    Electronic Digital Dual Timer




934137   $99.99

asymmetric cycler, independent time setting ON/OFF

Cycler with independent adjustable switch ON/OFF

It is used for regular room ventilation, cyclic dehumidification, light control, circulating pumps, noon signs, etc.

2 time functions:

  • Cycler beginning with pulse
  • Cycler beginning with pause

Function choice is done by an external jumper of terminals S-A1

Time scale 0.1 s - 100 days devided into 10 time ranges:
 (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h / 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days / 3 days - 30 days / 10 days - 100 days)

Rough time setting via rotary switch

  • Voltage range: AC 230 V or AC/DC 12 - 240 V
  • Output contact: 1x changeover/SPDT 16 A
  • Output indication: multifunction red LED
  • 1-MODULE, DIN rail mounting
- See more at: http://www.elkoep.com/products/relay-modular-electronic-devices/time-relays/special/asymmetric-cycler-crm-2h-446/#sthash.8Azpx0Fk.dpuf

Model:  934137


Asymmetric cyclic timer

independent time setting ON/OFF

Cycler with independent adjustable switch ON/OFF

It is used for regular room ventilation, cyclic dehumidification,
 light control, circulating pumps, noon signs, etc.

2 time functions:

  • Cycler beginning with pulse
  • Cycler beginning with pause

Time scale 0.1 s - 100 days divided into 10 time ranges:
 (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min /
 0.1 hrs - 1 h / 1 hrs - 10 hrs / 0.1 day - 1 day /
1 day - 10 days / 3 days - 30 days / 10 days - 100 days)

  • Voltage range:  AC/DC 12 - 240 V
  • Output contact: 1x changeover/SPDT 16 A
  • Output indication: multifunction red LED
  • 1-MODULE, DIN rail mounting

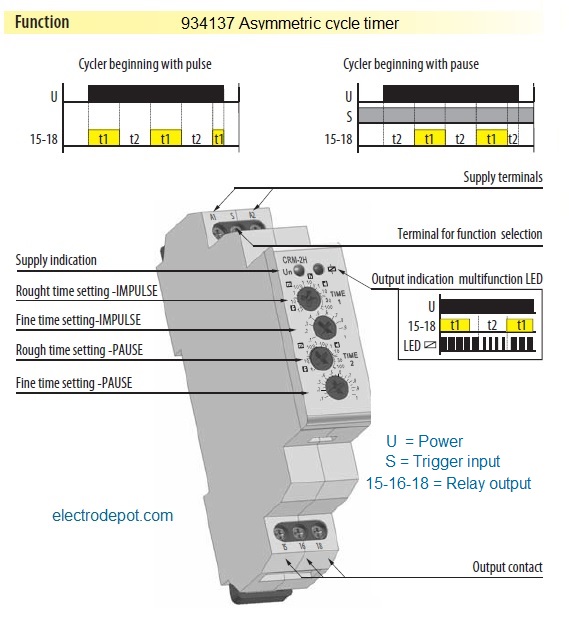

  • Functions and Wiring Details*











asymmetric cycler, independent time setting ON/OFF

Cycler with independent adjustable switch ON/OFF

It is used for regular room ventilation, cyclic dehumidification, light control, circulating pumps, noon signs, etc.

2 time functions:

  • Cycler beginning with pulse
  • Cycler beginning with pause

Function choice is done by an external jumper of terminals S-A1

Time scale 0.1 s - 100 days devided into 10 time ranges:
 (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h / 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days / 3 days - 30 days / 10 days - 100 days)

Rough time setting via rotary switch

  • Voltage range: AC 230 V or AC/DC 12 - 240 V
  • Output contact: 1x changeover/SPDT 16 A
  • Output indication: multifunction red LED
  • 1-MODULE, DIN rail mounting
- See more at: http://www.elkoep.com/products/relay-modular-electronic-devices/time-relays/special/asymmetric-cycler-crm-2h-446/#sthash.8Azpx0Fk.dpuf



.
