Antennas 27MHz 154MHz 300MHz 433MHz - Yagi - dipole

Antennas

150MHz 2 Meter Omni Antenna ( 5/8 )

Frequency	140-170 MHz
Gain	4.5 dBi
Overall Length	37 inches
Impedance	50 Ohms
Connector	SO-239
Max Power	150 Watts
VSWR 5MHz	< 1.5:1 avg.
Polarization	Vertical
Wind Data	150 mph

12 Feet of 50 ohm coaxial cable,

Transmission Pattern

931487 $159.99

150MHz 2 Meter Omni High Gain ( 7/8 )

Frequency	144-170 MHz
Gain	6.7 dBi
Overall Length	126 inches
Impedance	50 Ohms
Connector	SO-239
Max Power	200 Watts
VSWR 5MHz	< 1.5:1 avg.
Polarization	Vertical
Wind Data	150 mph

12 Feet of 50 ohm coaxial cable,

Transmission Pattern

150MHz 2 Meter 3 Element Yagi Antenna

Transmission Pattern

Frequency	150-174 MHz
Gain	9.2 dBi
Overall Length	42 inches
Vertical Beam	57 degrees
Impedance	50 Ohms
Connector	SO-239
Max Power	200 Watts
VSWR	< 1.5:1 avg.
Polarization	Linear
Wind Data	150 mph

12 Feet of 50 ohm coaxial cable,

433 MHz Antennas433 MHz Antennas

938432 3 Element Beam Yagi

433 MHz, Gain: 7 dBi
Rating: 150 Watts
Impedance 50 ohms N terminal
Vertical beam 45 degrees
Horizontal beam 60 degrees
With 12 inch Coax
Base Length: 18", Weight: 1.0lb

938432 $179.99

938433 12 Element Beam Yagi

433 MHz, Gain: 14 dBi
Rating: 150 Watts
Impedance 50 ohms N terminal
Vertical beam 42 degrees
Horizontal beam 45 degrees
With 12 inch Coax Cable
Base Length: 64", Weight: 5.0lb

938433 $369.99

   938450    37 inch Omni Base

433 MHz, Gain: 3 dBi
Rating: 250 Watts
Impedance 50 ohms N terminal,
Vertical beam 45 degrees
Length: 37", Weight: 3.0lb

938092 OMNI DIRECTIONAL 3 dBi

14" Omni Antenna 938092

433 MHz, 3dBi gain,
Impedance 50 ohms Magnetic base
With 120 inch (3M) Coax Cable
and SMA m connector

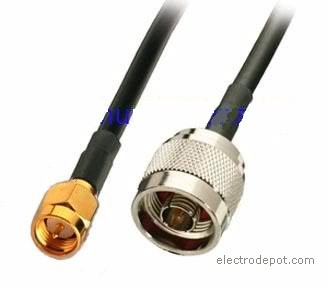

    938610 Coaxial Cable
    10 Feet RG58 Coax with N Male
    and SMA Male

    938630 Coaxial Cable
    30 Feet RG8 Coax with N Male
    and SMA Male
