Contactors are hermetically sealed with
high quality glass to metal seals. This provides more precise process temperature control
and eliminates the noise from the on-off operating cycles of
electro-mechanical relays and
contactors. The stainless steel tube is totally encapsulated in
high grade UL approved epoxy protective coating.
Low coil power required to actuate the contactor.
Applications:
Transfer Switch, Solar Panel Switch, Duct heaters, Baseboard
heaters, Pool heaters, Motor control, Flood lights, High intensity
lamps, Mercury vapor lighting, Sodium vapor lighting, Tungsten
lamps, Corrosive locations, Dusty, oily locations, High cycle rate
application,
General
Specifications:
Contact Voltage: 120, 240, & 480 VAC, Inductive, 600VAC
Resistive
Operate time 50 ms, Release time 80 ms
Encapsulated
Sealed mercury contacts, Operation in the upright position only
Dielectric withstand 2500 VAC RMS, Longevity Millions of
cycles
Temperature range -31° to 185°F (-35° to 85°C)
Contact terminals pressure connectors for AWG #4-14
Each Coil rating 5.8 VA, Optional coil voltage:
24,208,220,277,480VAC or 12,24,48,125 VDC (price may vary)
Approvals: UL listed, file #E62767; CSA certified, file #LR41198
Other coil voltages and 4 poles available upon Request
SPECIAL ORDER ITEMTo
ORDER
NORMALLY OPEN (NO)
NORMALLY CLOSED (NC)
..........................35 Amp
(Resistive)
Price
35NO-120
35NC-120
Single pole 35 amp 120V AC
coil
$129.95
235NO-120
235NC-120
Two pole 35 amp 120V AC
coil
$229.95
335NO-120
335NC-120
Three pole 35 amp 120V AC coil
$269.99
NORMALLY OPEN (NO)
NORMALLY CLOSED (NC)
..........................60
Amp (Resistive)
Price
60NO-120
60NC-120
Single pole 60 amp 120V AC
coil
$229.95
260NO-120
260NC-120
Two pole 60 amp 120V AC
coil
$339.95
360NO-120
360NC-120
Three pole 60 amp 120V AC coil
$439.95
NORMALLY OPEN (NO)
NORMALLY CLOSED (NC)
..........................100 Amp
(Resistive)
Price
100NO-120
100NC-120
Single pole 100 amp 120V AC
coil
$499.95
2100NO-120
2100NC-120
Two pole 100 amp 120V AC
coil
$749.95
3100NO-120
3100NC-120
Three pole 100 amp 120V AC coil
$859.95
Single pole
Two pole

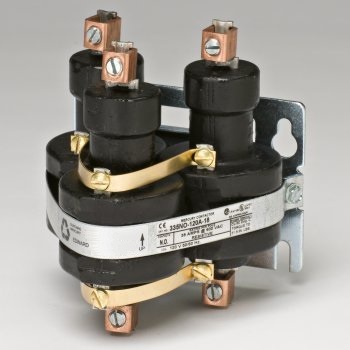

Three pole
