Model: 937098

Special Order

 937098 Yagi  $399.99

Hi Gain Directional Long Range Antenna

Frequency 26-28 MHz
Gain 11 dBi
Vertical Beam 27 degrees
Impedance 50 Ohms
Connector SO-239
Max Power 200 Watts
VSWR < 1.5:1 avg.
Polarization Vertical
Wind Data 150 mph
(Boom Length) 11.5
(Longest Radius) 19
Overall Weight: 19 Lbs
Surface Area 4.5 sq. ft.

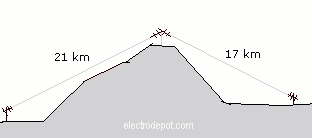

Antenna range calculator

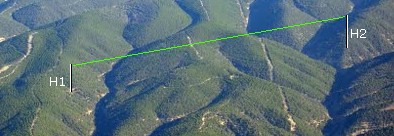

  Enter  H1 Station Antenna Height
  Enter  H2 Station Antenna Height
  Feet Meters

  For the 1st station,  the Radio Horizon is away.
  For the 2nd station, the Radio Horizon is away.
              The total line of sight distance is Miles Km   .

Optional Repeater Request form
