Performance
6 miles ( 10
Km )
line-of-sight • Extended range up to 20
Km
• Not limited to line-of-sight
communication
Applications: Industrial Monitoring, Pump control, Monitor remote
sites, Tank Level,
Lighting control, Remote Mobile system, PLC remote, SCADA,
Irrigation, Gates.
Factory process control, Alarms, Generators,
Solar, Wire replacement.
Specifications
Digital Transmitter
Supply power
12VDC / 8Watt
Inputs
N/O Normally
Open, digital dry contact
Transmitter power
per
FCC Part 15.249,
50mV/m @ 3m
Frequency
154MHz •
License free MURS band
Transmission
Digital Encoded
Gaussian_frequency-shift_keying
Channels
16 addresses per system
GFSK
Power draw
Standby 1mA,
Transmission 1200mA
Response
Loop 500 msec
Weight
5.36
lb ( 2.44kg )
each unit
Dimensions
NEMA4, IP65
8.76" W x5.75" H x 3.24" D
Specifications
Digital Receiver
Supply power
12VDC / 5Watt
Output
Relay 8Amp, SPDT (NO/NC) Class 2 Pilot Duty
Output mode
(*) Continuous - Momentary or Latching
Configuration
DIP switch factory
preset
Compliance
FCC CFR part 15.247, 95 sub E
Power draw
Standby 30mA, Full
load 400mA
Antenna Z
50 Ohm, RF Connector
SO-239
Ambient temp
14° to 140° F (-10° to 60°
C)
Enclosure
NEMA4, IP65
8.76" W x5.75" H x 3.24" D
COMPLIANCE: per FCC Part 15.249, 50mV/m @ 3m
Circuit board Compliance with UL796 and UL
94
MIL-STD-461E for Electro-Magnetic
Interference (EMI)
MIL-STD-901D Grade A for High Impact Shock
MIL-STD-167B for Vibration
Wiring Terminals
DISCLAIMER:
(*) Maximum
continuous transmission time per FCC; 5 minutes
Radio control equipment
in not to be used in life safety.
Radio Installations shall be performed by a certified
professional
Extended Range
MX Modules
Up to 10 Km of line-of-sight range
with MXT4
Up to 3 Km with handheld device MXTH-4
Migro Encoding/Decoding technology Four (4) Independent Channels
Output mode selection: Latch or Momentary
Shielded Metal case NEMA4 - IP65
Antenna 931501 or 931487 (not
included)
Power: 12 VDC - Solar Ready
Dip Switch 12 Bit Code setting
Optional repeater if necessary
Multiple Transmitters and Receivers
Factory pre- configured system, Ready
No setup or programming required
No fees from carriers, No hacking
No software or internet
Not limited to line-of-sight
communication
ANTENNA Selection 154Mhz - 50 Ohm:
Short Range
Medium Range
Long Range
Long Range

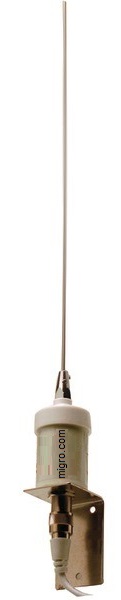

931501
931487
931490
931503 Yagi 3 Element
2.0 dBi, 17
inch
4.5 dBi, 37 inch
6.7 dBi, 125 inch
9.2 dBi, 42 inch
PL-259
SO-239
& 12ft Coax
SO-239
SO-239
.
Power Adapter,
931224
AC 100-240V to DC 12V, 2A
24W Switching Power Supply
RF Cable
( Made on order )
Coaxial Cable Shielded Low Loss 97%
With 2x PL -259 Connectors
