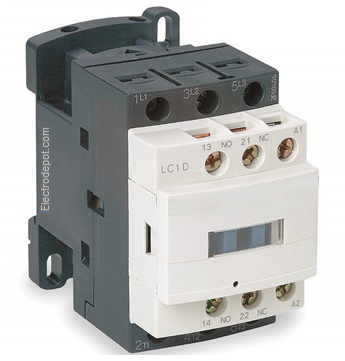

50 Amp. AC-1, 32 Amp. AC-3
 3 Pole  Normally Open (N.O.) contacts 600V
 50A. Incandescent, LED or resistive load
 32A. Motor control, 20HP@ 480VAC
Auxiliary contact  1NO/1NC
Power Lug Terminal Capacity AWG # 4
Coil 110/120VAC
Details     Specifications

Definite Purpose FLA 50A

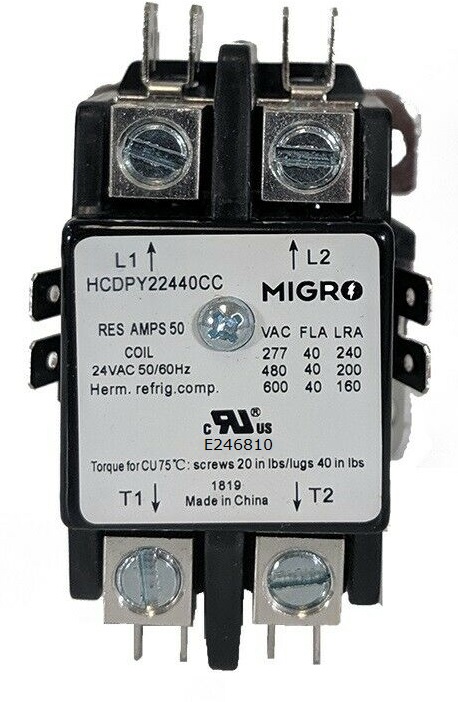

40 Amp  2 Pole,  600 VAC
50A AC-1, 40A. AC-3  600V
Lighting - Refrigeration - HVAC
Dim: 2.75 x 2.0 x 3.0 in (70 x 50 x 75 mm)
Power Lug Terminal Capacity AWG # 2
Coil  24VAC
  Specifications

.

40 Amp.  4 Pole  (Silent Operation)
 Normally Open (N.O.) contacts
 For 120/220/277/Rated 500V,
 7.5HP @240V, 15HP @460V
 40A. Ballast, 7 KW@ 220VAC
Dimension: 2.2w x 3.3h x 2.5d inch
 40Amp AC-1,  30Amp AC-3
Power Lug Terminal Capacity AWG # 4
Coil 110/120VAC

Specifications     add DIN rail

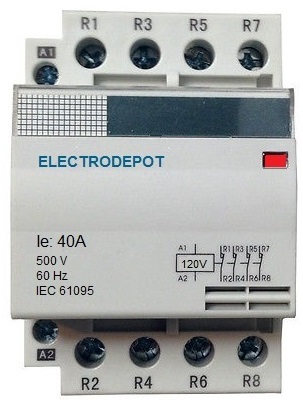

40Amp.  4 Pole N/C  (Silent Operation)
 Normally closed (N.C.) contacts
For 120/220/277/Rated 400V,
40A. Incandescent or resistive load AC1
32A. Ballast and General purpose  AC3
Power indicator, DIN mount
Dim: 2.2 x 3.5 x 2.5 in (55 x 90 x 70 mm)
Power Lug Terminal Capacity AWG # 4
Specifications

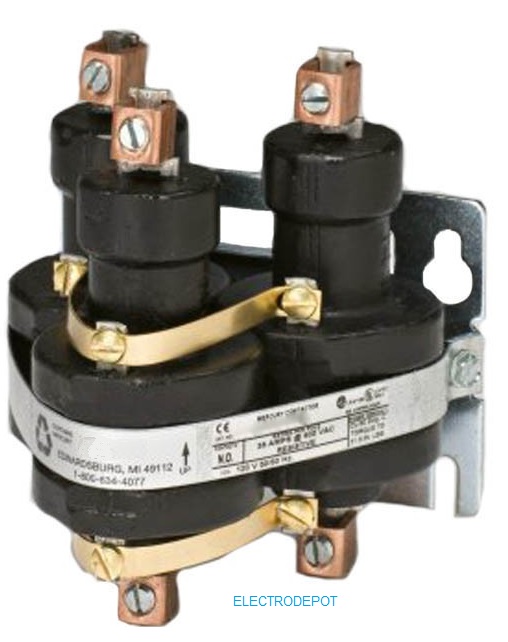

60 Amp. 4 Pole (Silent Operation)
Normally closed (N.C.) contacts
For 120/220/277/Rated 400V,
40A. Ballast, 7 KW@ 220VAC
63A  AC-1,  40A. AC-3
40A, 24VDC, DC Switching
Power indicator, DIN mount
Dim: 2.2 x 3.5 x 2.5 in (55 x 90 x 70 mm)
Power Lug Terminal Capacity AWG # 4 120VAC coil
 Specifications

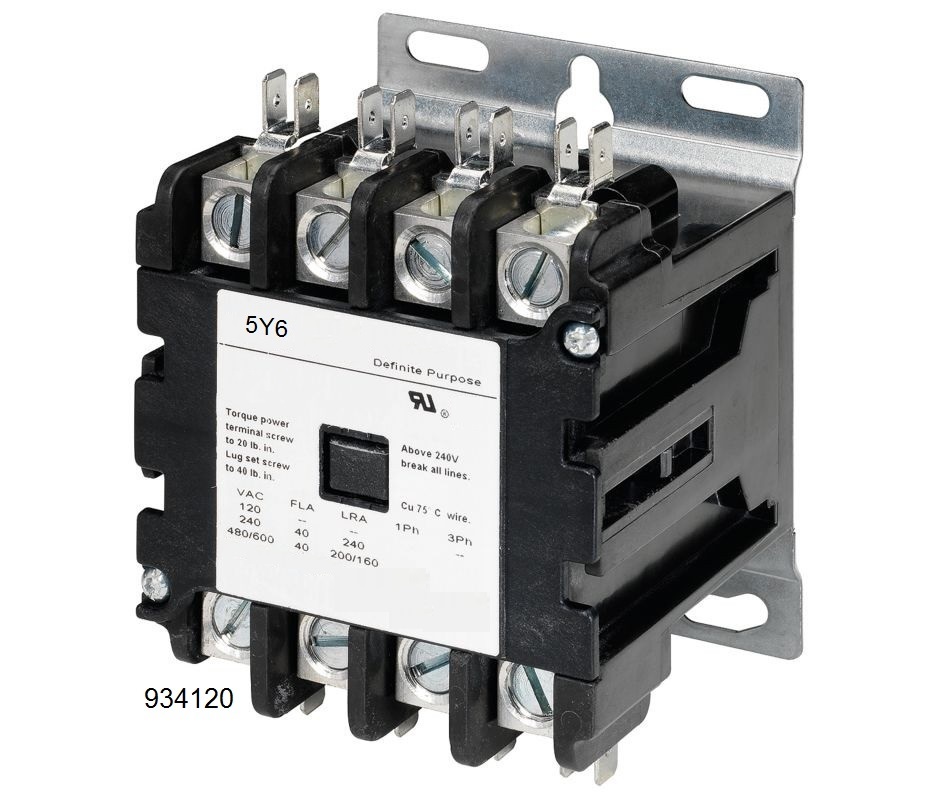

40 Amp.  4 Pole    944120
Normally Open (N.O.) contacts
NEMA 2 Definite purpose
10HP @240V, 15KW 277VAC
40 A. Ballast, 7 KW@ 220VAC
50A AC-1, 40A. AC-3  600V
Lighting - Refrigeration - HVAC
Dim: 2.75 x 3.5 x 3.0 in (70 x 90 x 75 mm)
Power Lug Terminal Capacity AWG # 2
120VAC coil SPECIFICATIONS  Dimensions

40 Amp.    3 Pole    943120
Normally Open (N.O.) contacts
NEMA 2 Definite purpose
10HP @240V, 15KW 277VAC
40 A. Ballast, 7 KW@ 220VAC
50A AC-1, 40A. AC-3  600V
Lighting - Refrigeration - HVAC
Dim: 2.75 x 3.5 x 3.0 in (70 x 90 x 75 mm)
Power Lug Terminal Capacity AWG # 4
120VAC coil

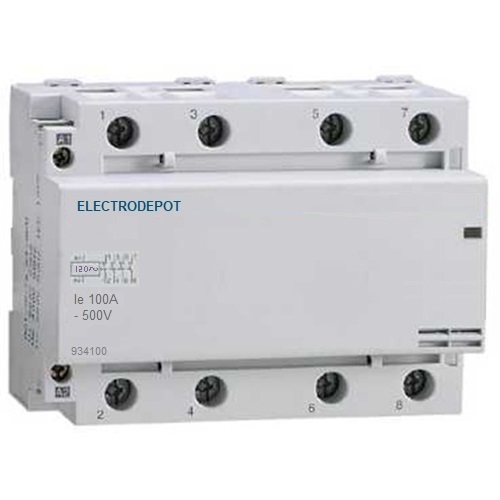

100 Amp. 4 Pole  Slim contactor
Normally Open (N.O.) contacts
For 120/220/277/Rated 500V,
50A. Ballast, 10 KW@ 220VAC, 15KW@277V
100A  AC-1,  40A. AC-3
40A, 24VDC, DC Switching
Power indicator, DIN mount
Dim: 110 x 81 x 68 mm) Dimensions
Power Lug Terminal Capacity AWG # 2/0
120VAC coil

100 Amp. 4 Pole   Slim contactor
Normally closed (N.C.) contacts
For 120/220/277/Rated 500V,
50A. Ballast, 10 KW@ 220VAC, 15KW@277V
100A  AC-1,  40A. AC-3
40A, 24VDC, DC Switching
Power indicator, DIN mount
Dim: 110 x 81 x 68 mm) Dimensions
Power Lug Terminal Capacity AWG # 2/0
120VAC coil

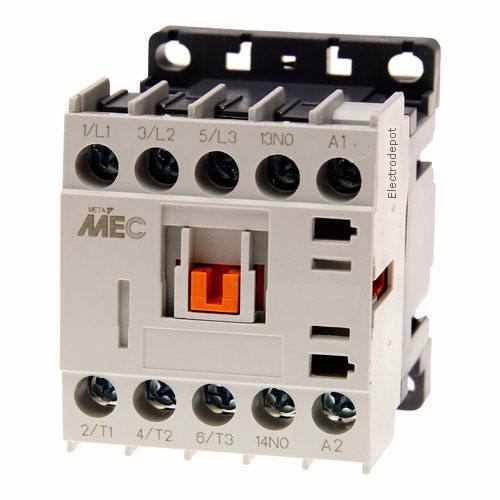

933021 Miniature Contactor
20Amp, 3 Pole, 120VAC Coil
2HP @240V, 7.5HP @460V
1HP @120V,  20Amp AC-1, 12Amp. AC-3
Screw Clamp Terminals, 600V, 1 N.O. Aux.,
AC Coil Current Inrush 32VA, Sealed 6VA
Dim: 1.7 x 2.5 x 2.3 in (45 x 64 x 58 mm)
Power Lug Terminal Capacity AWG # 8



933020 Miniature Contactor
20Amp, 3 Pole, 12VDC Coil
2HP @240V, 7.5HP @460V
1HP @120V,  20Amp AC-1, 12Amp. AC-3
Screw Clamp Terminals, 600V, 1 N.O. Aux.,
DC Coil Current Inrush/Sealed  250mA
Dim: 1.7 x 2.5 x 2.3 in (45 x 64 x 58 mm)
Power Lug Terminal Capacity AWG # 8

Specifications

Transformer 50VA
480/277/240/208VAC  To 120VAC

SPECIFICATIONS

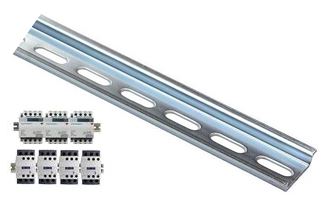

DIN rail 20cm (7.87inch)
