Wireless system 963
Features
Range: Up To 1Km
Line-of-sight
(Expandable)
Power required 12 VDC
NEMA 4 Fiber Weatherproof Enclosures 9x6x3 inches
Factory configured, Ready-To-Operate
License Free Radio Operation 433MHz, ISM Band
Description
The 943381 transmitters
and receivers
designed for multiple
wireless remote-control
applications.

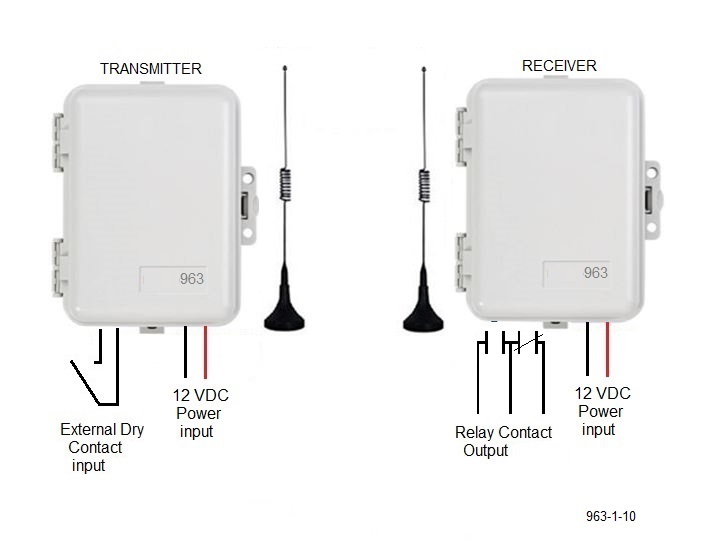

When triggered with an
external dry-contact
float switch, Pressure
Sw, timer sw. etc,
the Transmitter
will send a digital
encoded signal to its
companion control
Receiver.
The receiver will verify
the digital code and
then activate its relay
output.
Wireless System
General Specifications
Radio Frequency:
433 MHz
Regulatory: FCC Part
15 (No license required)
Control Channels: 1
circuit
per channel
Transmitter/Receiver
Code Matching: Factory
set
Antenna Connection:
RP-SMA
Transmit/Receive Range
(with included
antennas): Indoor/Urban
500mts (1700ft),
Line-of-sight 1 Km
Operating Temperature:
-22 to 113 ºF (-30
to 45 ºC)
Enclosures: NEMA 4
Fiber Weatherpoof
Antennas: 3dBi,
Omni 7 inch w 5 ft coax
(Included)
Transmitter
Specifications
Control each Input
Type: TWO wires
(Dry-contact)
RF Power Output:
1000mW
RF Data Rate: 250
kbps
RF Output Impedance:
50 Ohm nominal
Operating Power: 12
VDC @ 5W max TWO Wires
Receiver Specifications
Receive Sensitivity:
-100 dBm
RF Input Impedance:
50 Ohm nominal
Operating Power: 12
VDC @ 3W max TWO Wires
Control Output:
Relay
Contact 5Amp max 30V/240V, SPST Class 2 Pilot duty
Regulatory Compliance
FCC Part 15 (No license
required)
Product made in USA
|

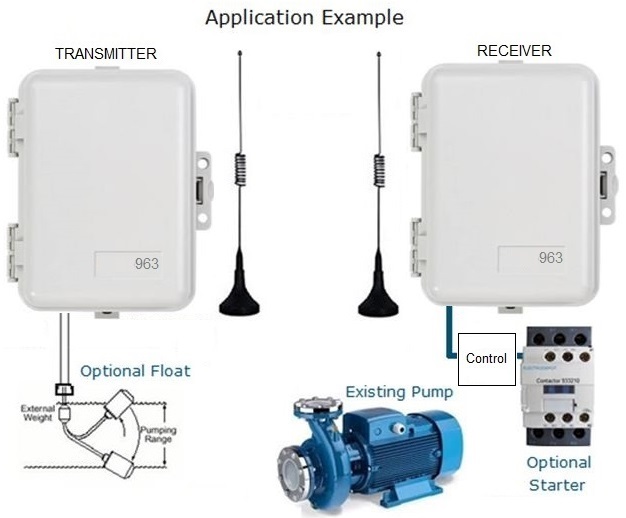

Applications:
Industrial Monitoring, Pump
control, Lighting controls,
Monitor remote instruments,
Gates, Irrigation, sensors and detectors,
Generators, Packing and mobile
system, SCADA installations,
Factory process control and
alarms, Flood control.
Optional Extended range antennas
TWO Antennas required; Transmitter &
Receiver
Long Range antenna 3 Km
938432
Extra long range antenna 5 Km
938433
|
|
|
|
