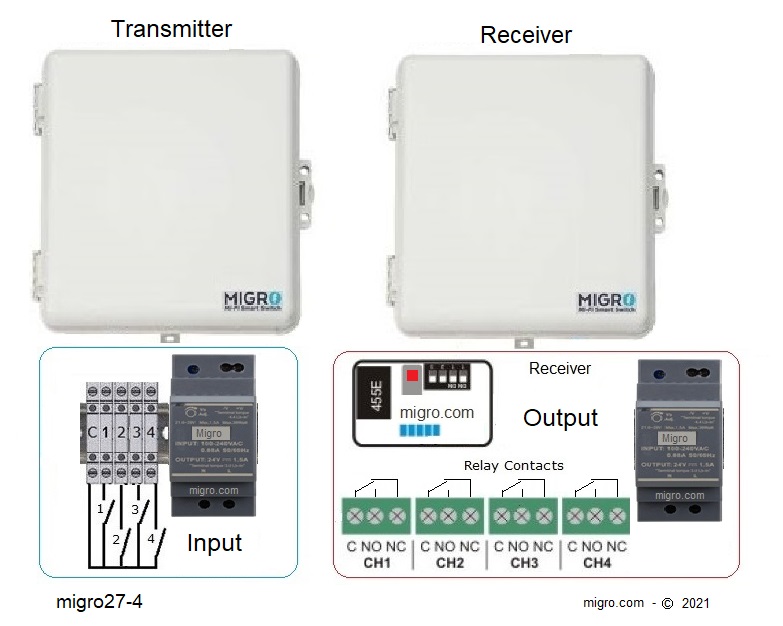

Industrial Wireless Radio Controls    Performance • 5 miles ( 10 km ) line-of-sight w Omni antenna • Extended range up to 20 km • Operation Selection: 120/240VAC, 12VDC, or  24V • Transmitter input N/O Dry contact • Relay Output SPDT, 10A @250VAC Class 2 • Heavy Duty Weatherproof, IP65  enclosure • License free operation  MURS band • Factory configured systems, Ready to operate • No setup or programming required • Not limited to line-of-sight communication Migro27-1 Single channel configuration Part  927012  12VDC Part  927017  120/240VAC Migro27-4 Four (4) channel configuration Part  927042  12VDC Part  927047  120/240VAC ■ Request a Quotation .    Specifications      Digital Transmitter Supply power 120/240VAC or 12VDC /  5watt  Inputs  N/O Normally Open, digital dry contact Transmitter power per FCC Part 15.249,  50mV/m @ 3m Transmission Digital Encoded   Gaussian_frequency-shift_keying Channels 16 addresses per system  GFSK Input Wiring Din Terminals,  Dry Contact Response Loop 500 msec Weight 2 lb (1.40kg)  each unit Dimensions* 9"W x 9"H x 4"D (230 x 230 x 100 mm)    Specifications      Digital Receiver  Supply power 120/240VAC or 12VDC /  5watt  Output   Relay  10Amp, Class 2 pilot duty SPDT Frequency 27MHz  • License free MURS band Configuration DIP switch factory preset Compliance FCC CFR part 15.247, 95 sub E Wiring Screw Terminals Antenna Z 50 Ohm Ambient temp  14° to 140° F (-10° to 60° C) Enclosure  Weatherproof, IP65    Transmission Mode Special Options:   ■  Continuous (1)  ■  Off  Delay Timing  ■  Pulse Output  ■  Latching for each channel  ■ Fail Safe sequence module  ■ Battery Backup module  ■ Repeaters and extended range systems  ■ High, Low Status level indicator lamp  ■ Automatic Start/Stop module    (1) FCC Part 95, subpart B   Package Kit:  One  Base Transmitter, One  Base Receiver  Two 34" Omni Antennas with 10ft coaxial cable,  Enclosures & Instructions Compliance: MIL-STD-461E for Electro-Magnetic Interference (EMI) MIL-STD-901D Grade A for High Impact Shock MIL-STD-167B for Vibration

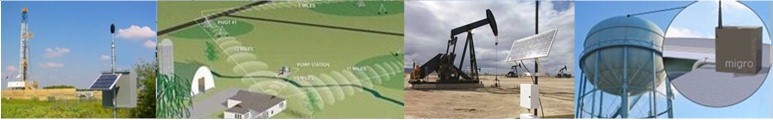

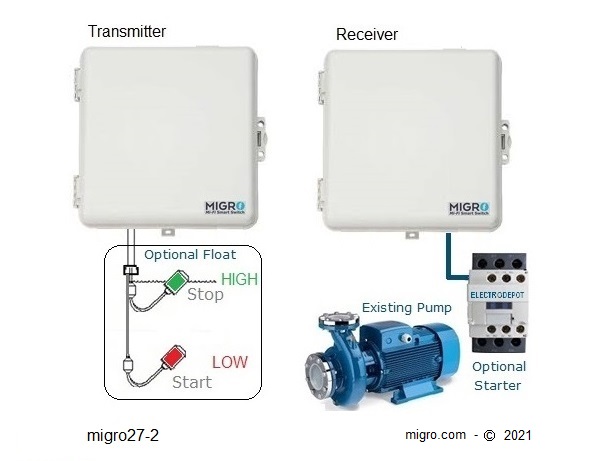

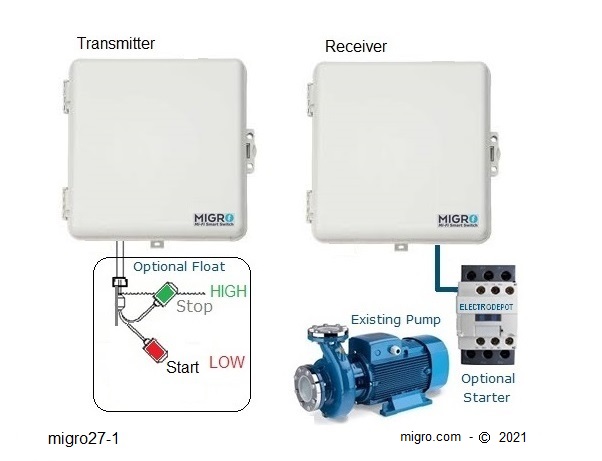

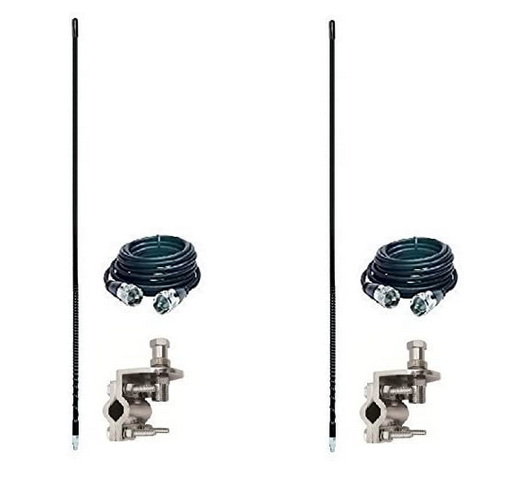

Long Range Wireless Systems  27MHz  The potential range is approximately 5 miles* and, with proper antenna application,  is not limited to line of sight. ■ Applications: Industrial Monitoring, Pump control, Monitor remote sites, Tank Level, Lighting control, Remote Mobile system, PLC remote, SCADA, Gates. Factory process control,  Alarms, Generators,  Solar,  Wire replacement. Please request a quotation   Single channel configuration Example   2 Channels Application Layout     . • Antenna Range Calculator 27MHz Omni Antenna 36 inch     Quarter Wave (3 foot)   Frequency 26 to 29 MHz Gain 3.5 dBi Vertical Beam 30 degrees Impedance 50 Ohms Connector SO-239 Max Power 150 Watts VSWR < 1.5:1 avg. Polarization Vertical 10 Feet of 50 ohm coaxial cable, connectors and mounting kit Part #  937099 Please Request latest price
