Wireless Controls and Automation



Industrial Wireless Radio Controls


 Performance
6 miles ( 10 km ) line-of-sight w Omni 3.5dBi antenna
 Extended range up to 20 km
Receiver with signal strength indicator ■■■ ■ ■
Operation: 120/240VAC or 12VDC
Transmitter input N/O Dry contact
Relay Output SPDT, 10A @250VAC Class 2 pilot duty
Heavy Duty NEMA4, IP65  enclosure
License free operation MURS band
Factory configured systems, Ready to operate
No setup or programming required
Not limited to line-of-sight communication

 Antenna Selection

   Specifications      Digital Transmitter
Supply power 120/240VAC or 12VDC /  5watt
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 6.8 lb (3.40kg)  each unit
Dimensions (*) 12"W x 10"H x 6"D (300 x 240 x 120 mm)
FCC ID OHKFMT154 Class B Devices:
Designation 20KOF1D

   Specifications      Digital Receiver
Supply power 120/240VAC or 12VDC /  5watt
Output   Relay  6Amp, Class 2 pilot duty
Frequency 154MHz  • License free MURS band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Screw Terminals
Antenna Z 50 Ohm
Ambient temp  14 to 140 F (-10 to 60 C)
Enclosure  NEMA4, IP65


(1)  Continuous operation maximum 5 minutes by FCC

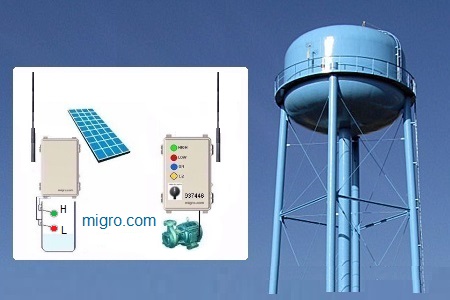

Optional Solar Repeater
DISCLAIMER:
Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.
 (*)  Final Component layout and Dimension may vary


   Long Range Wireless Systems  915400   FCC Certified ID: OHKFMT154

Applications:

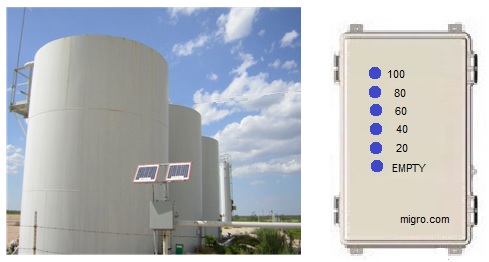

Industrial Monitoring, Pump control, Monitor remote sites, Tank Level,
Lighting control, Remote Mobile system, PLC remote, SCADA, Gates.
Factory process control,  Alarms, Generators
Solar,  Wire replacement.

  Part #       Please request a quotation 2m

915404  NEMA4 System 4 Channel
915414  NEMA4 Receiver 4 Channel
915424  NEMA4 Transmitter 4 Channel

915408  NEMA4 System  8 Channel
915418  NEMA4 Receiver 8 Channel
915428  NEMA4 Transmitter 8 Channel

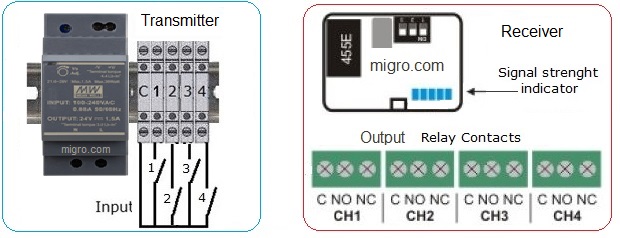

 4 Channels Wiring Layout

Transmission Mode Special Options Available:

 ■  Continuous (1)

  Off  Delay Timing

  Pulse Output

  Latching for each channel

 ■ Fail Safe sequence module
 ■ Battery Backup module
 ■ Low Battery Alarm
 ■ High, Low Status level indicator lamp
 ■ Automatic Start/Stop module

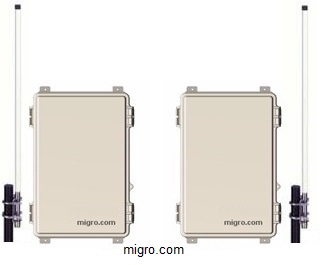

Basic Package Kit:  One  Base Transmitter, One  Base Receiver
Two 34" Omni Antennas with 10ft coaxial cable, NEMA 4 Enclosures & Instructions




  Special Option: Single circuit operation ( Start- Stop)

Memory Module

Operation 12 or 24VDC
Single (1) Ch 915481
Two (2) Ch 915482
Four (4) Ch 915484
Application

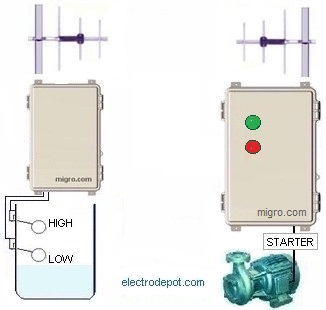

Single channel float sw, Lighting,
Monitoring, PLC drive, Valve control, Alarm

Operation:
On Closure; Single pulse Start
When Open Second pulse Stop
