| Model: 937202 |
 |
|
937202 System
Please Request latest price
■
Complete system includes:
One Transmitter 2 Ch in NEM4 Enclosure
One Receiver with Red and Green Lamps
Two Yagi Antennas 938432
Operation:
Example
■ If Low
Level SW Close: Red light ON, Pump Start.
■ If
High Level SW Close: Green light ON, Pump
Stop.
Optional tank level
sensor; Float Sw, pressure Sw,
etc,
Provide the signals for the
operation
Monitoring:
■ Red
light indicates the tank level
is low
■ Green
light indicates the tank level
is high

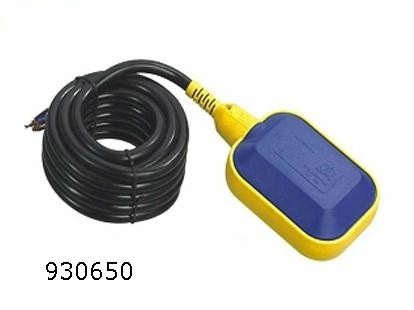

Optional
Float Switches 93650
 |
|
Wireless
supervised controller: Pumps, level
control, monitoring, lighting
Performance
■ 2 Mile
(3.km) line-of-sight
938432 ant.
■ Optional long range 5 Miles ( 8 km ) |
|
.
|
| Supply power |
12 VDC @
400 mA, Included: Power Supply 110/220Vac |
|
Inputs 2 Channel |
N/O Normally
Open, digital dry contact |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
|
Channels |
16 addresses per system
GFSK |
|
Input Wiring |
Screw Terminals,
Dry Contact |
| Response |
Loop 500 msec
|
| Weight |
6.8 lb (3.40kg)
each unit |
| Dimensions |
10 x 8 x 4
in. /
(250 x200 x 100 mm) |
|
Specifications Digital Receiver
|
| Supply power |
12 VDC @
300 mA Included:
Power Supply 110/220Vac |
|
Output |
Relay
6.Amp, 30V/240Vac
Class 2 pilot duty |
| Frequency |
433 MHz •
License free Industrial ISM band |
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
| Wiring |
Screw Terminals |
| Antenna Z |
50 Ohm SMA RF connector |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
NEMA4 Fiber,
IP65 |
| |
|
