Wireless
Budget System |
|
|
|
Wireless system 963
Features
Range: Up To 1Km
Line-of-sight
(Expandable)
Power required 12 VDC ( Solar
Ready)
NEMA 4 Fiber Weatherproof Enclosures 9x6x3 inches
Factory configured, Ready-To-Operate
License Free Radio Operation 433MHz, ISM Band
Description
The 943381 transmitters
and receivers
designed for multiple
wireless remote-control
applications.
When triggered with an
external dry-contact
float switch, Pressure
Sw, timer sw. etc,
the Transmitter
will send a digital
encoded signal to its
companion control
Receiver.
The receiver will verify
the digital code and
then activate its relay
output.
Applications:
Industrial Monitoring, Pump
control, Lighting controls,
Monitor remote instruments,
Gates, Irrigation, sensors and detectors,
Generators, Packing and mobile
system,
Factory process control, Alarms, Flood control.
|
|
|
|
1Ch
963
|

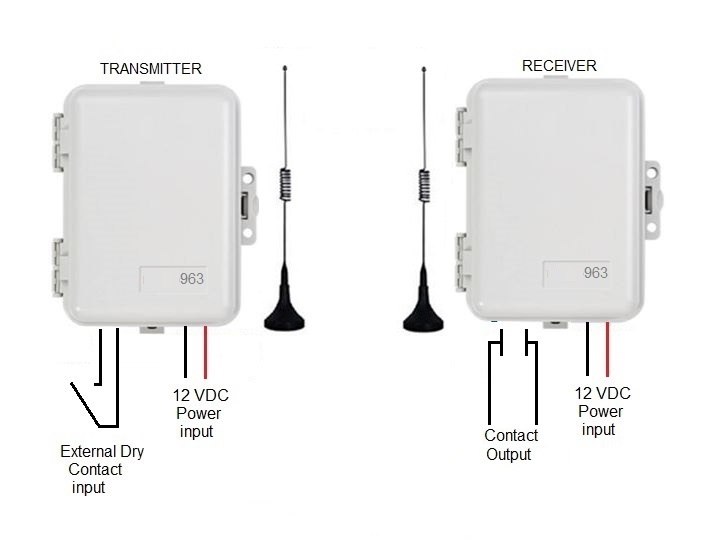

Single Channel Wireless Control:
Transmitter, Receiver, migro7 antenna
943301 ■
Request a
Quotation
|
|
|
|
4Ch
963 |

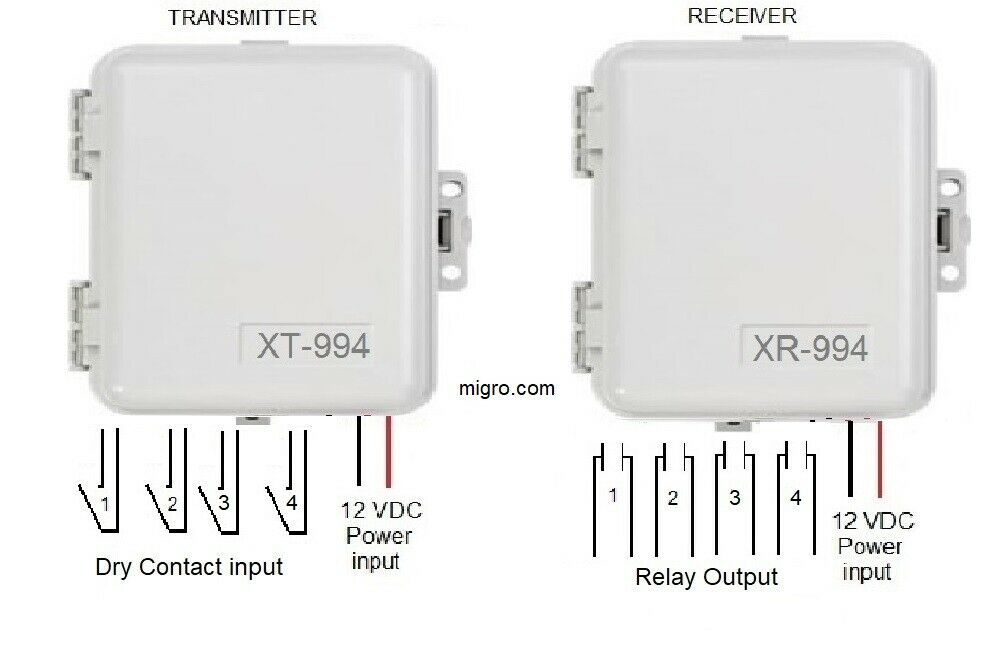

FOUR (4) Channel Wireless Control:
Transmitter, Receiver, migro7
antenna
943304 ■
Request a
Quotation
|
|
Wireless System
General Specifications
Radio Frequency:
433 MHz
Regulatory:
FCC Part 15 (No license
required)
Control Channels:
1 Circuit per channel
Transmitter/Receiver
Code Matching: Factory
set
Antenna Connection:
RP-SMA
Transmit/Receive Range
(with 7 inch Omni antennas):
Line-of-sight 1 Km
Operating Temperature:
-22 to 113 ºF (-30 to 45
ºC)
Enclosures: NEMA 4 Fiber
Weatherproof 9x9x4
inches
Antennas:
3dBi, Omni 7 inch w 5 ft
coax (Included)
Transmitter
Specifications
Control: each Input
Type: TWO
wires (Dry-contact)
RF Power Output:
1000mW
RF Data Rate:
250 kbps
RF Output Impedance:
50 Ohm nominal
Operating Power: 12 VDC @ 5W max
TWO Wires
Receiver Specifications
Receive Sensitivity:
-100 dBm
RF Input Impedance:
50 Ohm nominal
Operating Power:
12 VDC @ 3W max
TWO Wires
Control Output: Relay Contact
1Amp max 30V
TWO Wires
SPST Class 2
Pilot duty
Regulatory Compliance: FCC Part 15 (No license
required)
Product made in USA |
 |
Omni 433 MHz, Gain: 3 dBi Rating:
30 Watts
7 inch, Impedance 50 ohms
w 5 feet coax and SMA
terminal
( TWO Included
with the system ) |
Optional Extended range antenna 3Km line of sight
433 MHz,
3E, Gain: 7 dBi Rating:
100Watts
Impedance 50 ohms,
N terminal with 10 ft Coax cable
Vertical beam 45 degrees. Horizontal beam 60 degrees
Base Length: 18", Weight:
1.4lb
TWO Antennas required; Transmitter &
Receiver
|
|
|
