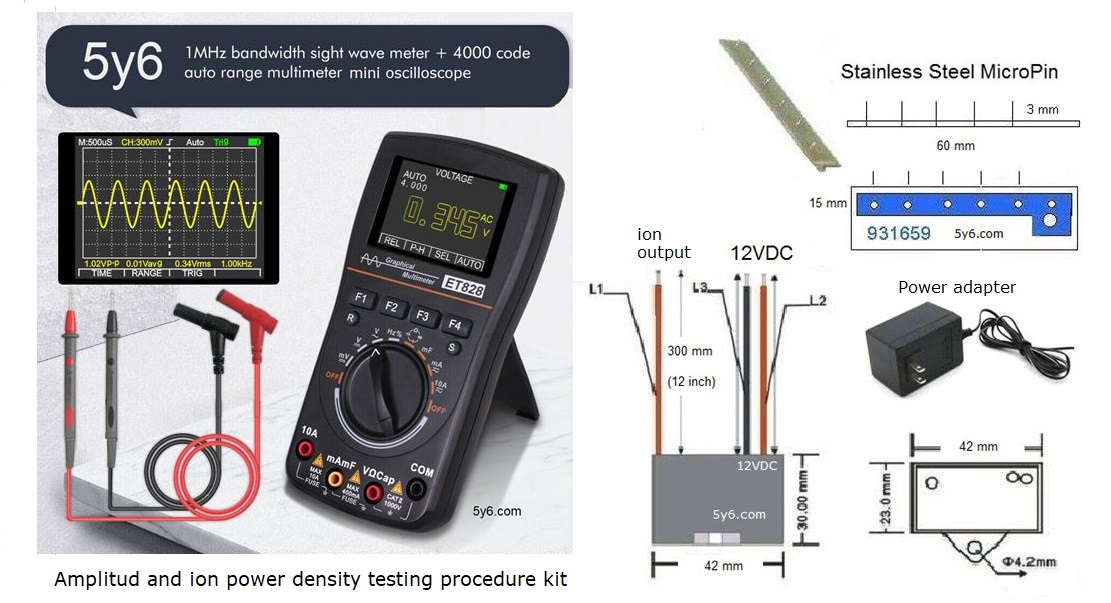

Ion Generator Test Kit
992147 Test
Development kit with Oscilloscope - multimeter
Negative ion Generator Test Kit ionizer
Density Graphic Wave ozone verification
ion's, Positive or Negative and Ozone propagation, wave
amplitude,
can be graphically displayed by these special oscilloscope screen.
Supplied:
One High Density Ion generator
Module Specifications
One Digital Oscilloscope
Multimeter ( Color may vary)
One Stainless Steel Needle pin
board
FREE plug in power supply 120/240VAC to 12VDC
Operation 12VDC, load max 1 W
Included technical documentation
for test procedure
To Order
992127

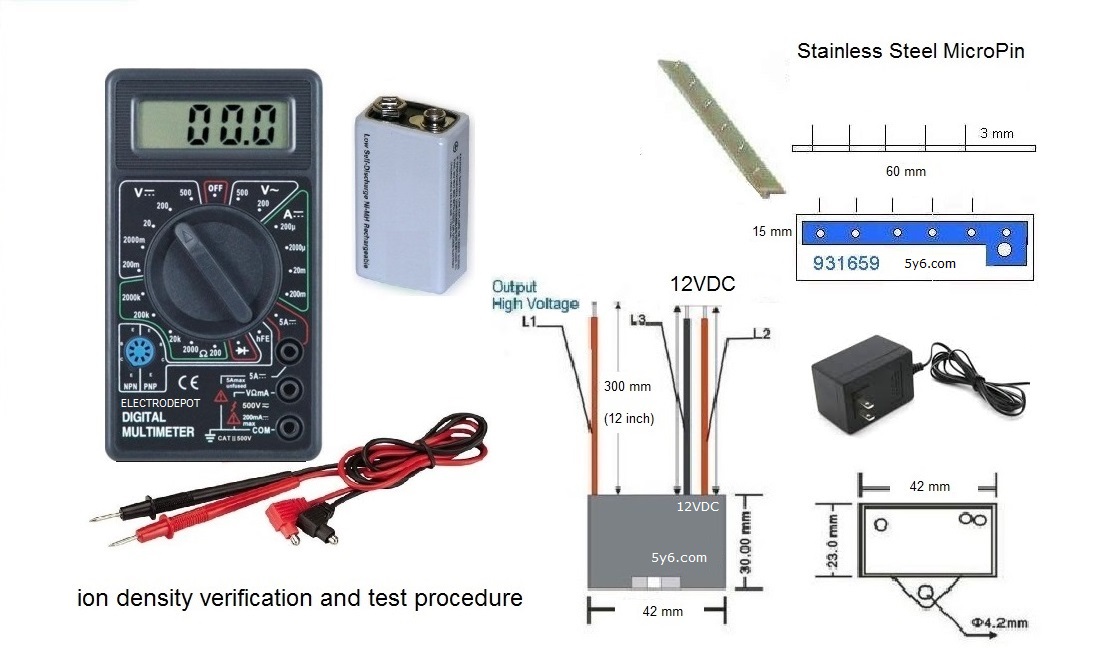

Ion Generator Test Kit with Multimeter
Negative
ion Generator Plasma ionizer Module w Power Density Test Meter
Kit
Supplied:
One High Density Ion generator
Module
Specifications
One Digital Basic Multimeter (
Color may vary)
One Stainless Steel Needle pin
board
FREE plug in power supply 120/240VAC to 12VDC
Operation 12VDC, load max 1 W
Included technical documentation
for test procedure
To Order
Performance
Specifications:
Negative ion generator-(Hi
Density)
12VDC input ( Extra Hi Density
Output) Module with separate MicroPin board
ion density test procedure
documentation with the module

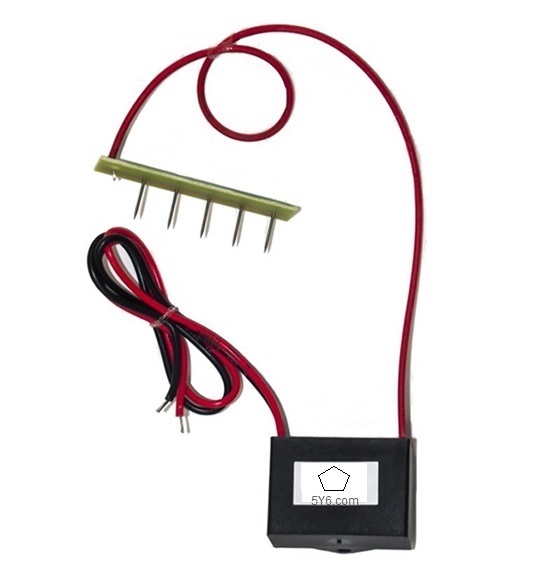

Encapsulated Component Module
part # ED930711
Performance
• Ion density:
1.9 billion ions/cc at 2.9 cm from emitter
• Ion output:
10 billion ions/second
• Coverage: 400
square feet based on HVAC installation
• Particle
effectiveness: as small as .01 micron
• High voltage
output -9 Kv.
• Power use:
less than 1 watt
• Power
requirements: 12VDC |
 |
Please use extreme caution
when working with this item and
do not purchase this if you are not knowledgeable of high
voltage safety precautions.
Safety precautions. Please Contact Your local HVAC Technician
or certified professional for the implementation and
installation of this Component
|
