Wireless Controls and Automation



Industrial Wireless Radio Controls

  Performance
.
• Range ( 5 km )  3 Miles
•
Operation:  120/240VAC or 12VDC
•
Transmitter Handheld multichannel
• Multiple Transmitters and Receivers
• Relay Output SPDT, 10A Class 2 pilot duty
  Output mode ; Pulse 3 seconds
  Optional Output OFF / ON Delay,  Latch

• Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 150 - 160MHz Industrial ISM band
                    or 430 - 450 Murs band
• Factory configured systems, Ready to operate
• No setup or programming required
  Not limited to line-of-sight communication

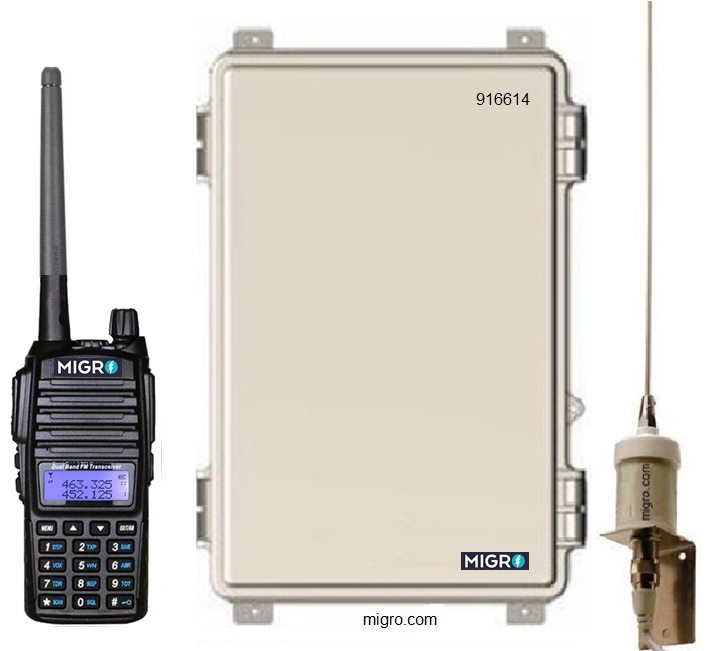

2m  ■ Part #   Handheld Transmitter

916022  Handheld Transmitter 3km
916024  Handheld Transmitter 6km

916601  NEMA4 Receiver 1 Channel
916604  NEMA4 Receiver 4 Channel
916544  NEMA4 Receiver 8 Channel

 Please request a quotation


   Specifications      Handheld Transmitter
Supply power Rechargeable battery
Supplied Power charger, Antenna, instructions
Transmitter power 30 dBm, per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded  EDTMF
Channels 16 addresses and up to 199 codes per system
Input Keypad Channel number, frequency, mode, etc
Response Loop 500 msec
Weight 8 Oz  (230g)
Dimensions Portable 5"H x 3"W x 1.2"D



   Specifications      Digital Base Receiver
Supply power 120/240VAC or 12VDC /  5watt
Output   Relay SPDT 10Amp, Class 2 pilot duty (Pulse 3 seconds)
Frequency 160 MHz  • License free Industrial ISM band
Configuration DIP factory preset ( Two way voice communication )
Compliance FCC CFR part 15.247, 95 sub E
Wiring DIN Screw Terminals
Antenna Z 50 Ohm SO239 RF connector
Ambient temp  14° to 140° F (-10° to 60° C)
Enclosure  NEMA4, IP65 Fiber  Weatherproof
Dimensions 9Hx9Wx64D inches



Credit Cards Wireless Range:  5 Km   ( 3 Miles )
Optional Extended range up to to 16 Km (10 Miles)


■ Applications


Industrial remotes, Pump control, Lighting control, Traffic systems, Signs,
Logistics, Packing and mobile system, Water management, Alarms,
Remote tank level operation, Generators
,  Solar sw,  Irrigation control.

   .

.

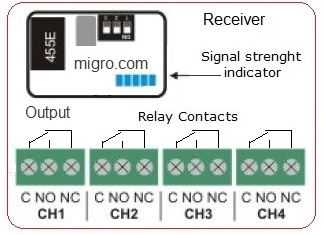

Transmitter 4 Channel Receiver Module

    Transmitter


  Output mode for each channel,
   Pulse 3 Seconds


  Optional:
On Delay Timer, Off Delay Timer,
  Start Stop Module w Fail Safe Class 2, Latch


Options and Modules:
Transmission frequency choice VHF and UHF
Fail safe poling module; Power or carrier loss supervision
Battery backup module;  UPS system for continuous operation
Extended range repeater;  Solar or power based




DISCLAIMER:
Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.
