Made in USACompact Wireless Radio Controls
Compact Wireless Radio Controls

360m (1200ft)   line-of-sight w 6 inch antenna
Operation:  120/240VAC  or 12VDC
Transmitter input N/O Dry contact
Relay Output SPDT, 6A Class 2 pilot duty
Heavy Duty NEMA4, IP65 UL Fiber enclosure
License free 430 - 450MHz Industrial ISM band
Factory configured systems, Ready to operate
No setup or programming required

Installation features
■ Operation license-free 433MHz ISM band
■ Easy installation,
No programming

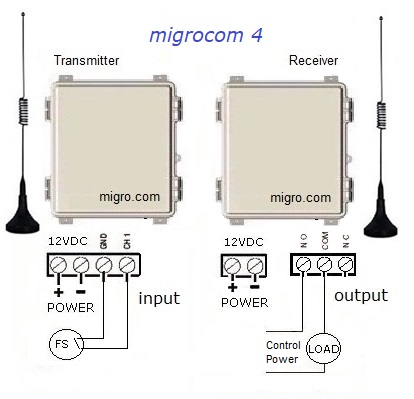

 Operation   Transmitter Receiver
 Continuous: Close switch
Open switch
Relay ON
Relay OFF
   Specifications      Digital Transmitter
Supply power 12 VDC @ 400 mA
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 2.2 lb (1.10kg)  each unit
Dimensions 6.50 x 6.50 x 3.25 in. /  (160.00 x 160.00 x 86.75 mm)

   Specifications      Digital Receiver
Supply power 12 VDC  @ 300 mA
Output   Relay SPST  contact 5.Amp, 30V/240vac  Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Components mounted on 35mm DIN rail
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14 to 140 F (-10 to 60 C)
DIN Rail  IP22, UL94-5VA, DIN mount 35mm or panel mount

  930080 series


Long Range Universal 1, 2 4 Channel

Industrial Monitoring,  Pump control, Monitor,  Lighting,
Mobile system,  PLC remote, Alarms, Factory process control
Generators. Remote alarms,  Solar, Wire replacement

 Part  943312  12VDC
Part  943324  24VDC
Part  943327  120/240VAC

Request a Quotation

Antenna Selection ( TWO  are required )

	938432   Yagi antenna 3 E

938432   Yagi antenna 3 E

7 dBi  2 Mile+
Length: 18", Weight: 1.lb
with 10 ft coax cable and connector

Antenna Selection


938438  Omni directional antenna

938438  Omni directional antenna

3 dBi  1 Mile+
Length: 37", Weight: 3.lb
with 10 ft coax cable and connector

Antenna Selection


Compact Wireless Radio Controls

DISCLAIMER:  Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.
