Industrial Wireless Radio Controls    Performance • 5 miles ( 10 km ) line-of-sight w Omni antenna • Extended range up to 20 km • Operation Selection: 120/240VAC, 12VDC, or  24V • Transmitter input N/O Dry contact • Relay Output SPDT, 10A @250VAC Class 2 • Heavy Duty Weatherproof, IP65  enclosure • License free operation  MURS band • Factory configured systems, Ready to operate • No setup or programming required • Not limited to line-of-sight communication Migro27-4 Four (4) channel configuration Part  927042  12VDC Part  927047  120/240VAC ■ Request a Quotation .    Specifications      Digital Transmitter Supply power 120/240VAC or 12VDC /  5watt  Inputs  N/O Normally Open, digital dry contact Transmitter power per FCC Part 15.249,  50mV/m @ 3m Transmission Digital Encoded   Gaussian_frequency-shift_keying Transmitter Load Standby 0.1mA, Transmission 240mA Channels 16 addresses per system  GFSK Input Wiring Din Terminals,  Dry Contact Response Loop 500 msec Weight 2 lb (1.40kg)  each unit Dimensions* 9"W x 9"H x 4"D (230 x 230 x 100 mm) Specifications Digital Receiver  Supply power 120/240VAC or 12VDC /  5watt  Output   Relay  10Amp, Class 2 pilot duty SPDT Frequency 27MHz  • License free MURS band Configuration DIP switch factory preset Compliance FCC CFR part 15.247, 95 sub E Wiring Screw Terminals Antenna Z 50 Ohm Ambient temp  14° to 140° F (-10° to 60° C) Enclosure  Weatherproof, IP65    Transmission Mode Special Options:   ■  Continuous (1)  ■  Off  Delay Timing  ■  Pulse Output  ■  Latching for each channel  ■ Fail Safe sequence module  ■ Battery Backup module  ■ Repeaters and extended range systems  ■ High, Low Status level indicator lamp  ■ Automatic Start/Stop module    (1) FCC Part 95, subpart B   Package Kit:  One  Base Transmitter, One  Base Receiver  Two 34" Omni Antennas with 10ft coaxial cable,  Enclosures & Instructions   • Antenna Range Calculator 27MHz Omni Antenna 36 inch   Frequency 26 to 29 MHz Gain 3.5 dBi Vertical Beam 30 degrees Impedance 50 Ohms Connector SO-239 Max Power 150 Watts VSWR < 1.5:1 avg. Polarization Vertical 10 Feet of 50 ohm coaxial cable, connectors and mounting kit Part #  937099 Please Request latest price

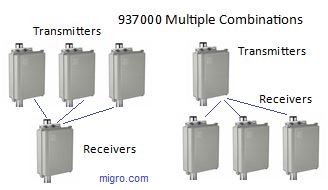

Long Range Wireless Systems  27MHz   5 miles* and, with proper antenna application, is not limited to line of sight. ■  APPLICATIONS Remote control operation Gas and oil pipeline alarm Power monitoring Perimeter protection Solar systems monitoring Remote I/O PLC controller Long range target control Avionics and Marine operation Automatic pump control Tank level monitoring Long range alarm systems Factory automation Lighting controls Irrigation System Traffic Controller Mobile operation Wire replacement Please request a quotation Single Channels Application Layout   2 Channels Application Layout   Special Configurations       COMPLIANCE: per FCC Part 15.249,  50mV/m @ 3m Circuit board Compliance with UL796 and UL 94 MIL-STD-461E for Electro-Magnetic Interference (EMI) MIL-STD-901D Grade A for High Impact Shock MIL-STD-167B for Vibration
