Wireless Controls and Automation

           Wireless Links                                                                I/O Point-to-Point Monitoring and Control
Migro® Bidirectional - Two Way
.
No parameterization nor programming required
No Internet, Transparent I/O System
No Third party cell, No monthly fees
You have full control over your own carrier
Power system 12/24VDC solar ready
Real time status feedback from the remote site
Fast installation and easy setup


Special application request form

  2 Miles (3.km) line-of-sight with Yagi 7 dBi antenna
 ■  Range • 1500. feet (500.m) in-building
 ■ Optional range 17 miles (30 km) line-of-sight

Applications: Field operations, irrigation, PLC remote i/o, lighting, process, pumps, generators, solar systems, water management, plantations, remote monitoring, mobile, security, robots, conveyor control, traffic control, test and research equipment, industrial process, plc extension, wire replacement, hazardous area remotes.

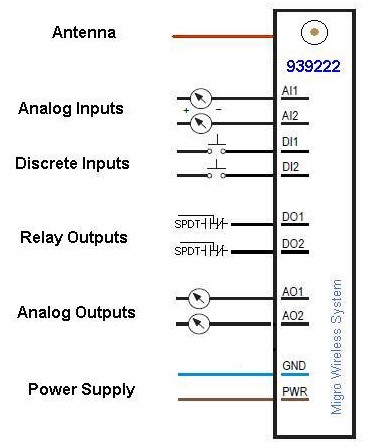

939222









NEMA4  Bidirectional Analog - Digital
With (2) Two 4-20 mA and (2) Two Digital Signals



Set with Master & Slave
■  License free 900 MHz Industrial ISM band
■  Antenna sma 50 Ohm,
2 Digital input     Dry Contact N/O
2 Relay outputs:  6.Amp SPDT @240V Pilot Duty
2 Analog inputs:  4-20mA,  Z: 20 Mohm
2 Analog outputs: 4-20mA,  700 ohm @24V
Wiring diagram & installation instructions



  939222  Please request current price

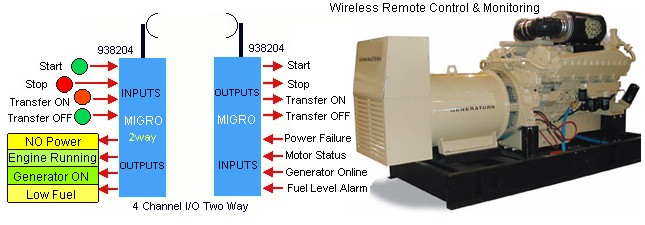

938204

Bidirectional Wireless  4 Channel I/O Digital


Set with Master & Slave  Modules

 Each Module with:

4 Digital inputs, N/O Dry Contact,

4 Relay outputs SPST  5A, 240V Pilot duty class 2

Operation in 12 or 24 VDC
 ■  Din or Panel mount



 4 CH   938204        $1,499.95







Specifications

.

 938208


Bidirectional Wireless  8 Channel I/O Digital

Set with Master & Slave   Modules

  Each Module with:

8 Digital inputs, N/O Dry Contact,

8 Relay outputs SPST 5A, 240V Pilot duty class 2

Operation in 12 or 24 VDC
 ■  Din or Panel mount

 Specifications
 938208


 8 CH   938208   $1,899.95







Optional Enclosure NEMA 4

■ Fiberglass enclosure
■ Pole or wall mount ready
■ Screw hinged cover, with
■ Aluminum internal sub panel
■ UL/cUL NEMA/CSA 4
■ UL #E345005

    DIMENSIONS

  971206     $189.99






            Antenna Selection ( TWO  are required )









938433  Yagi antenna

12 Element

 433MHz, 14 dBi  5 Mile+
Impedance 50 ohms  N terminal
 Length: 43", Weight: 3.lb



  938433     $369.99

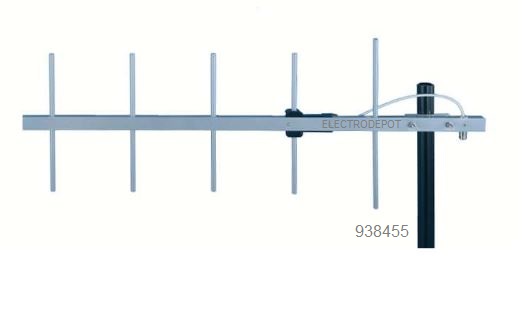

938455
5 Element Beam  Yagi Antenna

433 MHz, Gain: 9 dBi   3 Mile+
Rating: 150 Watts
Impedance 50 ohms  N terminal

Vertical beam 55 degrees
Horizontal beam 60 degrees
With N female termination
Base Length: 32", Weight: 4.0lb

  938455     $249.99




938432   Yagi antenna 3 E

433MHz, 7 dBi  1 Mile+
Impedance 50 ohms  N terminal
Length: 18", Weight: 1.lb


  938432     $179.99



938092

938092


 14" Omni Antenna

433 MHz,  3 dBi  short range line of sight
10ft coax mini cable
  SMA

  938092    $39.99


 10 Feet RG58 Coax with N Male and SMA Male

938666    $69.99


 30 Feet Low Loss RG8 Coax with N Male and SMA Male

938667    $159.99







        Transmission range calculator

Specifications
   Digital  Input / Output
Supply power 12 VDC ±10% @ 600 mA
Inputs N/O Normally open digital dry contact
Outputs Relay contact 5Amp SPST 240V Pilot duty
Output Mode Normal or Retain status
Ambient temp 14° to 140° F (-10° to 60° C)
Ambient RH 5% to 95% RH non condensing
Connection Terminal screws DIN
Response 500 msec full duplex
Weight 5.2 lb (2.40kg)  each unit, 2 and 4 channel
Dimensions w NEMA4 Enclosure 12"W x 10"H x 6"D (300 x 240 x 150 mm)
   Radio System
Frequency 433 MHz license free industrial
Receiver  Digital 16 bit, sensitivity -110 dBm
Configuration DIP switch
Data rate 19.2 KBPS Encoded
Antenna external 50 Ohm  (optional)
Compliance FCC CFR part 15.247 ISM
Digital Transmission Gaussian_frequency-shift_keying
Transmitter channels 16 addresses per system
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Enclosure Selection NEMA4 selection: Fiber or Metal.




DISCLAIMER:  Radio control equipment in not to be used in life safety. Radio control systems are subject to applications, environmental and atmospheric conditions,
We are not liable of failures on miss applications, radio black outs or interruption of the transmissions.  Radio Installations shall be performed by a certified professional.
